آی سی فلیپ فلاپ

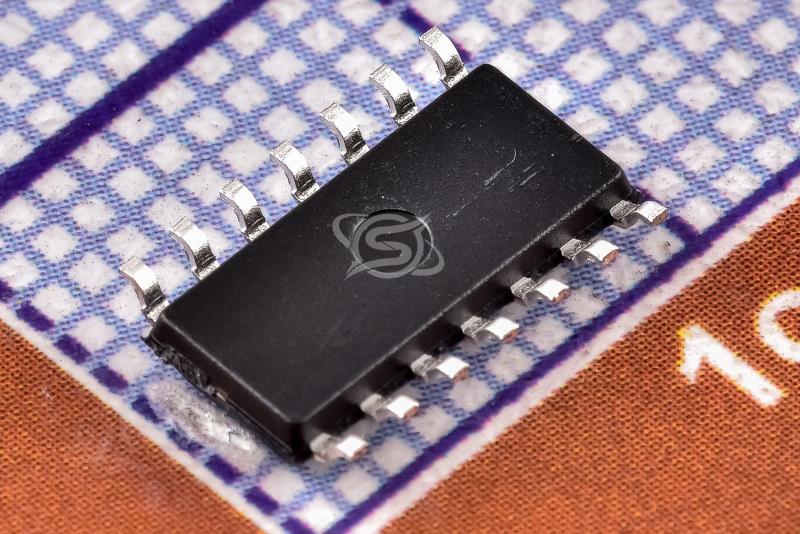

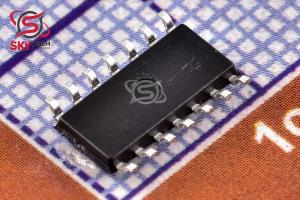

CD4013
dual D flip-flop integrated circuit
کیفیت: ORIGINAL(distributor) پکیج: SOP-14
قیمت تک فروشی 114,174 ریال
قیمت عمده 103,652 ریال (10 به بالا)
قیمت ویژه 102,179 ریال (100 به بالا)
قیمت فوق العاده101,442 ریال (1000 به بالا)
قیمت تک فروشی 0.195 تتر با تخفیف
0.770.670.660.65
|
توضیحات
آي سي HEF4013B يک فليپ فلاپ 2 تايي است که ويژگي ست شدن مستقيم (DIRECT SET) ، پاک کردن مستقيم ورودي (CLEAR-DIRECT INPUT ) ، کلاک ورودي (CP) و خروجي هاي Q و مکمل آن را دارد. اطلاعات وقتي که CP در وضعيت LOW قرار دارد پذيرفته مي شود و با لبه بالارونده آن به خروجي ارسال مي گردد. فرمان هاي DS و CS از نوع ACTIVE HIGH مي باشند يعني در حالت مثبت بودن عمل مي کنند.
اين آي سي در رنج وسيعي از ولتاز بين 3 تا 15 ولت نسبت به Vss (که معمولا به زمين وصل مي شود) کار مي کند . پين هايي از آي سي که استفاده نمي شوند بهتر است که به Vss يا Vdd متصل گردد.
Description
The CD4013B dual D flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and
P-channel enhancement mode transistors. Each flip-flop
has independent data, set, reset, and clock inputs and ‘‘Q’’
and ‘‘Q’’ outputs. These devices can be used for shift register applications, and by connecting ‘‘Q’’ output to the data
input, for counter and toggle applications. The logic level
present at the ‘‘D’’ input is transferred to the Q output during
the positive-going transition of the clock pulse. Setting or
resetting is independent of the clock and is accomplished
by a high level on the set or reset line respectively
|
