سنسور دما و رطوبت

SHT10

consists of a low-cost version with the SHT10 humidity sensor, a standard version with the SHT11 humidity sensor, and a high-end version with the SHT15 humidity sensor.

کیفیت: ORIGINAL(distributor)       پکیج:

قیمت تک فروشی  5,788,613  ریال

قیمت عمده  5,262,528  ریال (10 به بالا)

قیمت ویژه  5,157,311  ریال (100 به بالا)

قیمت فوق العاده5,104,703  ریال (1000 به بالا)

SKYTECH قیمت تک فروشی 9.844  تتر با تخفیف

52.84847.0446.56





تعداد موجودی در انبار : موجودی تمام شده است



در صورت موجود شدن خبر بده
افزودن به علاقه مندی ها


تعداد درخواست:











توضیحات

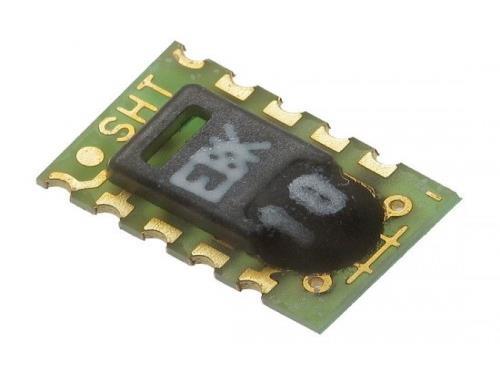

SHT10 از محصولات شرکت Sensirion و يک سنسور کوچک با راه اندازي آسان است که ميتواند رطوبت نسبي محيط را اندازه گيري نمايد. سنسور SHT10 يک سنسور ديجيتال رطوبت و حرارت است. اين سنسور کاملاً کاليبره بوده و از دقت فوق العاده بالايي برخوردار است. پايداري اين سنسور در طولاني مدت بالاست و با توجه به مشخصات دقت و پايداري، قيمت مناسبي دارد. تکنولوژي ديجيتال CMOSense توانسته تا دو سنسور را در يک چيپ مجتمع سازد. دو سنسور کاليبره شده براي اندازه گيري دما و رطوبت نسبي.



Description

The SHT1x digital humidity sensor is a reflow solderable sensor. The SHT1x series consists of a low-cost version with the SHT10 humidity sensor, a standard version with the SHT11 humidity sensor, and a high-end version with the SHT15 humidity sensor. As with every other Sensirion sensor type from the SHTxx humidity sensor family, they are fully calibrated and provide a digital output. The SHT1x humidity sensor series (including SHT10, SHT11, and SHT15) is Sensirion’s family of surface-mountable relative humidity sensors. The humidity sensors integrate sensor elements plus signal processing on a tiny footprint and provide a fully calibrated digital output. A unique capacitive sensor element is used for measuring relative humidity, while temperature is measured by a band-gap sensor. Its CMOSens® technology guarantees excellent reliability and long-term stability. The humidity sensors are seamlessly coupled to a 14-bit-analog-to-digital converter and a serial interface circuit. This results in superior signal quality, a fast response time, and insensitivity to external disturbances (EMC). Each SHT1x humidity sensor is individually calibrated in a precision humidity chamber. The calibration coefficients are programmed into an OTP memory on the chip. These coefficients are used to internally calibrate the signals from the sensors. The two-wire serial interface and internal voltage regulation allows for easy and fast system integration. SHT1x is supplied in a surface-mountable LCC (leadless chip carrier), which is approved for standard reflow soldering processes. The same sensor is also available with pins (SHT7x).







 موضوعنوع فایل
ديتاشيتPDF دانلود فایل
 موضوعنوع فایل
راه اندازي سنسور با اردينوWWW دانلود فایل
