توضیحات

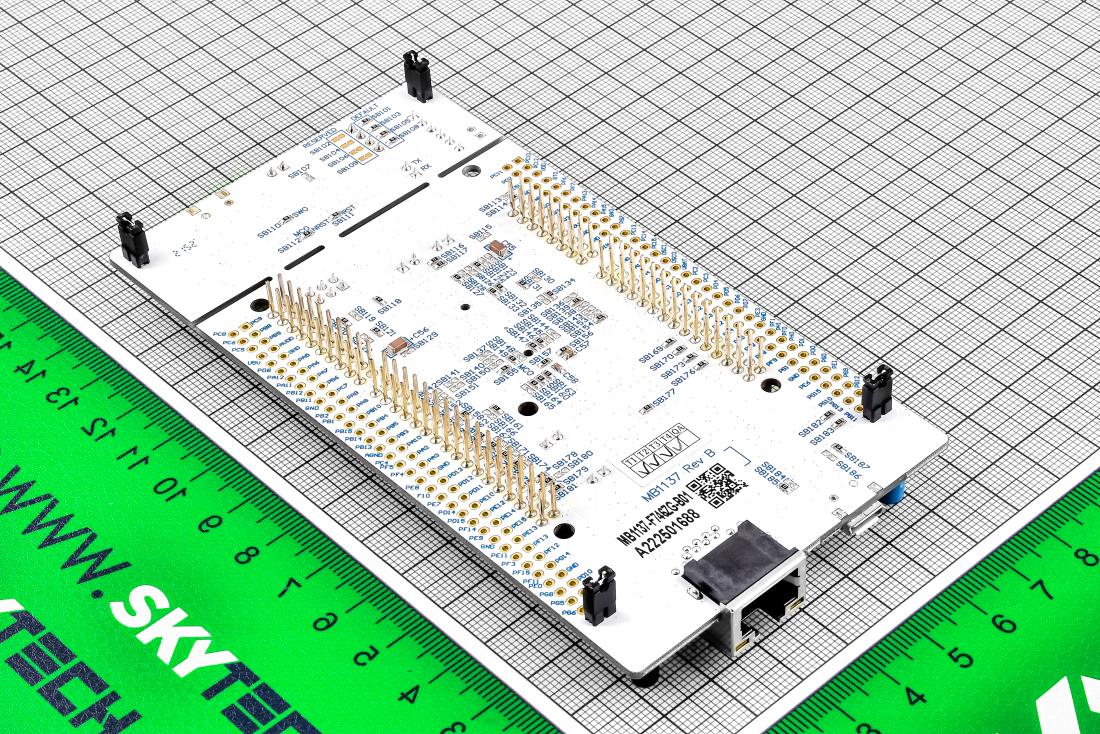

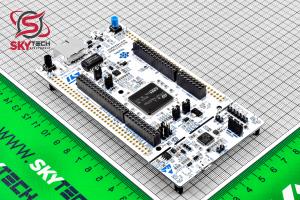

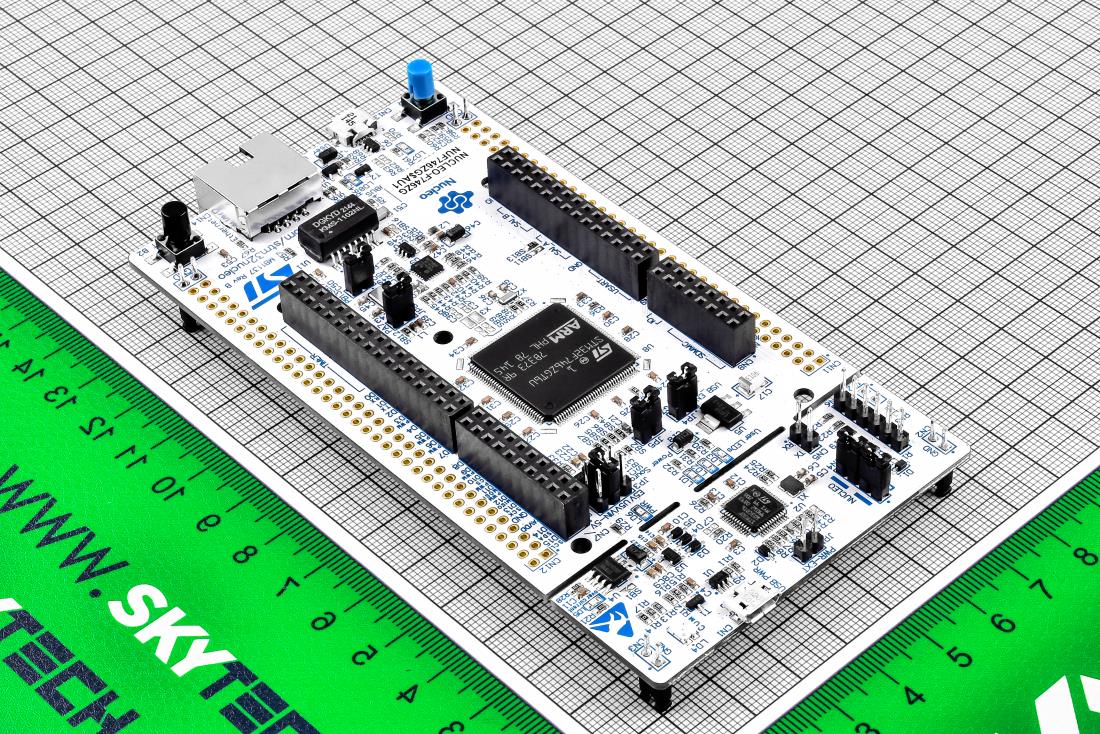

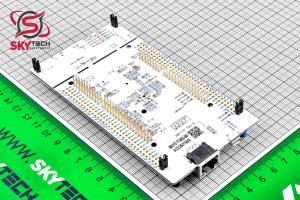

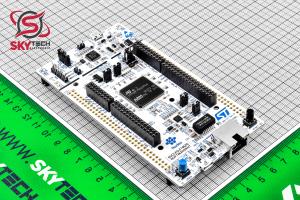

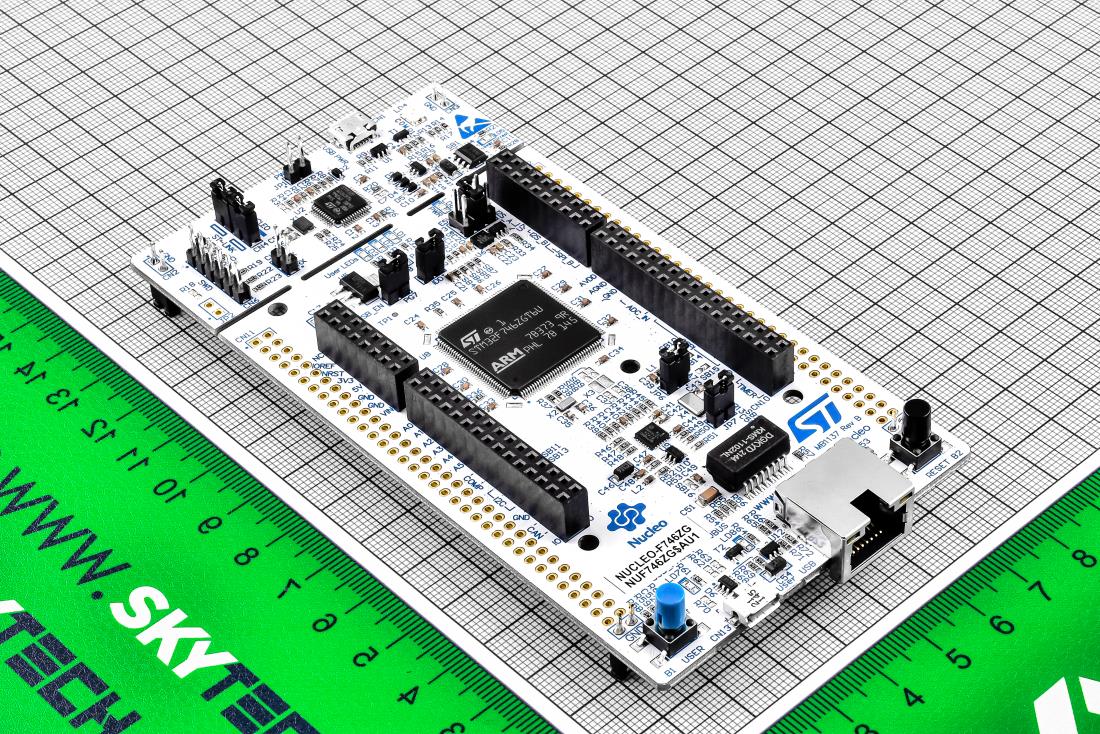

برد STM32F746ZG يکي از بردهاي آموزشي ميکروکنترلرهاي سري STM از شرکت ST بوده که بر اساس ميکروکنترلرهاي 32بيتي ساخته شده است. اين برد آموزشي کليه امکانات لازم را براي شروع کار مبتديان دارد و همچنبن با توجه به امکانات و مشخصات برد به آساني مي توان از آن در پروژه ها و کارهاي صنعتي استفاده کرد.
--امکانات :
-دکمه و اليدي يوزر
-کريستال هاي ساعت و ميکرو
-کانکتور USB,ETHERNET
و....
Description
The STM32 Nucleo-144 boards (NUCLEO-F207ZG, NUCLEO-F303ZE, NUCLEO-F412ZG,
NUCLEO-F413ZH, NUCLEO-F429ZI, NUCLEO-F439ZI, NUCLEO-F446ZE,
NUCLEO-F722ZE, NUCLEO-F746ZG, NUCLEO-F756ZG, NUCLEO-F767ZI and
NUCLEO-H743ZI) provide an affordable and flexible way for users to try out new concepts
and build prototypes, by choosing from the various combinations of performance and power
consumption features provided by the STM32 microcontroller. The ST Zio connector, which
extends the Arduino™ Uno V3 connectivity, and the ST morpho headers provide an easy
means of expanding the functionality of the Nucleo open development platform with a wide
choice of specialized shields. The STM32 Nucleo-144 boards do not require any separate
probe as they integrate the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo-144
boards come with the comprehensive free software libraries and examples available with
the STM32Cube MCU Package, as well as a direct access to the Arm® Mbed Enabled™ online resources at http://mbed.org.
|
