توضیحات
ماژول GY-39 با دو چيپست MAX44009 و BME280 براي سنجش رطوبت ، دما، فشار و نور از طريق پروتکل UART , I2C
اين ماژول ارزان و کم مصرف با ميکروکنترلر STM32F اطلاعات محيط را جمع اوري و به شما تحويل ميدهد.
قابل راه اندازي با تمامي ميکروکنترلر ها .
ARDUINO , STM32 , STM 8, LPC و...
ولتاژ کاري : 3 تا 5 ولت
رنج دماي انداره گيري : -40 تا + 85سلسيوس
رنج رطوبت : از 0% تا 100%
رنج اندازه گيري نور : 0.045lux~ 188000lux
رنج اندازه گيري فشار : 300 ~ 1100hpa
کاربردها :
کنترل نور محيط ديجيتال
اينترنت اشيا
خانه ي هوشمند
مانيتورينگ هوا
و...
Description

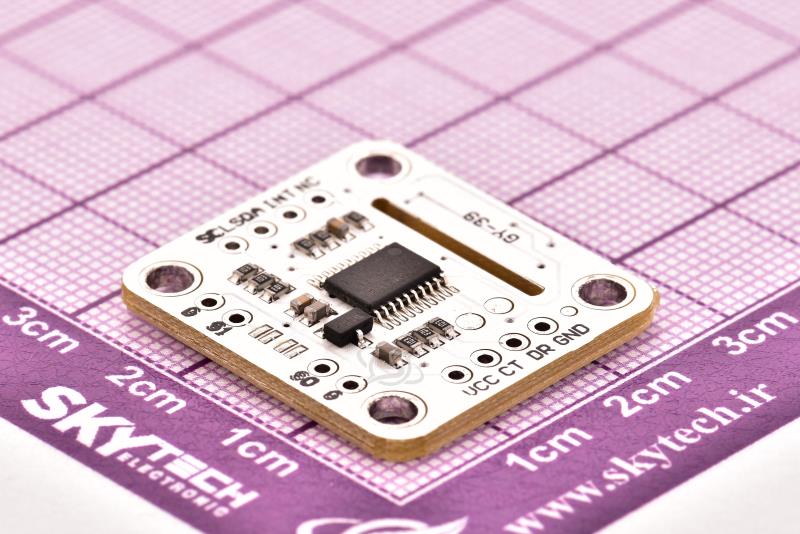

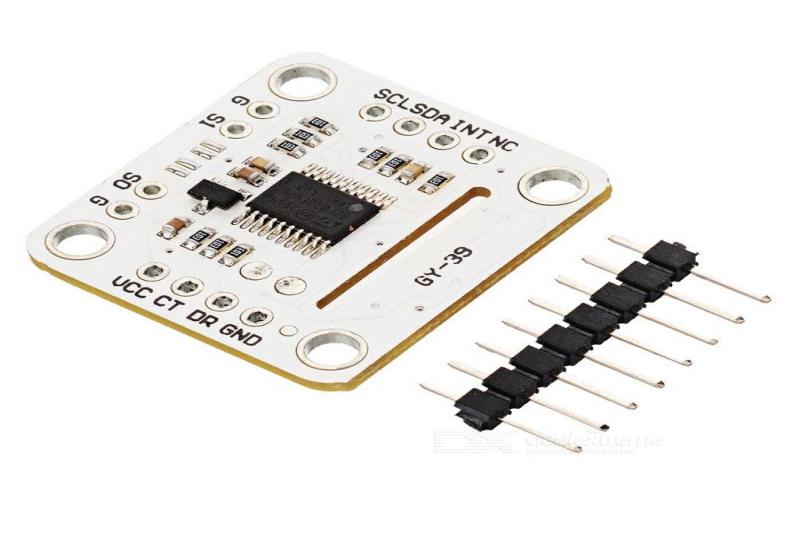

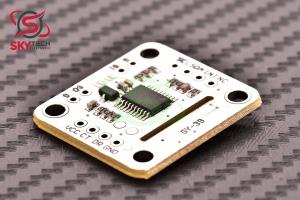

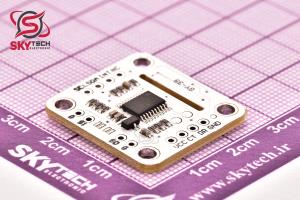

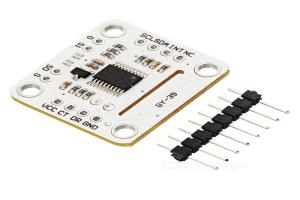

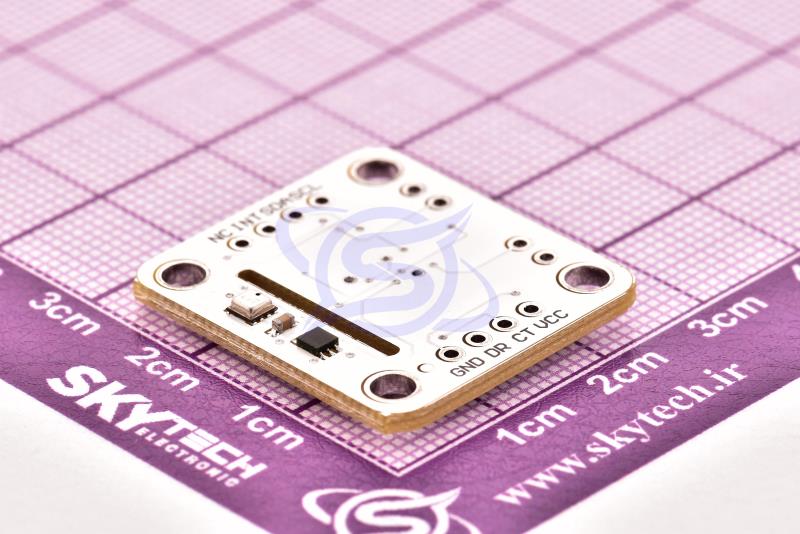

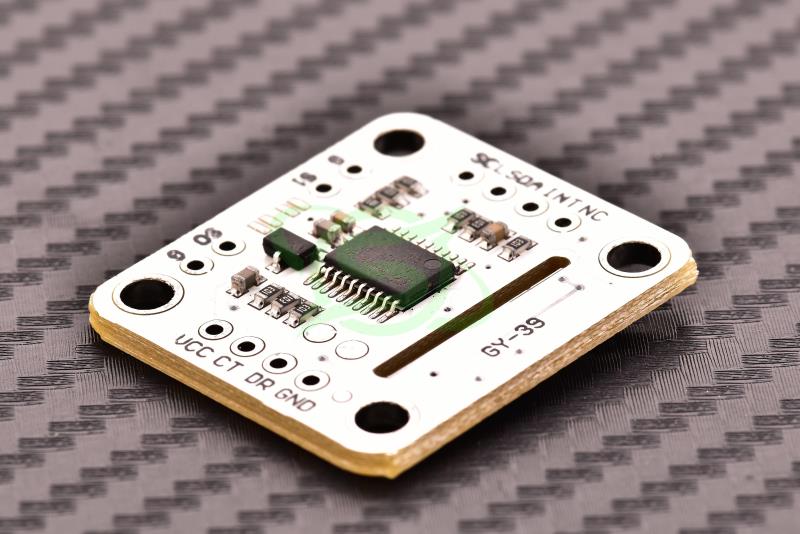

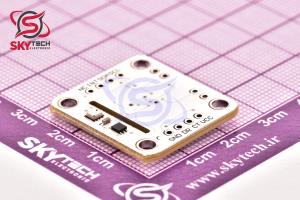

GY-39 MAX44009 BME280 Sensor Module GY-39-44009 Temperature and Humidity Sensor UART IIC TTL Electronic DIY Board
GY-39 is a low-cost low-power detection of pressure, temperature and humidity and light intensity sensor module,
Its working principle is that the on-board MCU collects various sensor data and outputs the calculated result directly after the unified processing. This module has two ways to read the data, namely serial UART (TTL level) or IIC (2 lines); there are two ways of continuous and inquiry output, save power-down settings, adapt to different working environment and single-chip computers and computers connection.
Provide Arduino, 51, STM32 microcontroller communication program, but does not provide schematics and internal microcontroller source; In addition, giving Andrews mobile phone software APP view data, and supports WiFi intranet connection, mobile phones and computers at the same time display data.
Note: The module can be set up a separate sensor chip mode of operation, as a simple sensor module, MCU does not participate in data processing.
Product Parameters
Chip Model: BME280 / MAX44009 / STM32F030XXXX
Working voltage: 3 ~ 5V
Working current: 5mA
Operating temperature: -40 ~ +85 degrees Celsius
Temperature range: -40 ~ +85 degrees Celsius
Humidity range: 0% ~ 100%
Light intensity range: 0.045lux~ 188000lux
Pressure range: 300 ~ 1100hpa
Response frequency: 10HZ
Storage temperature: -40 ~ 125 degrees Celsius
Size: 24.3mm * 26.7mm
Product Applications
Digital lighting management
Internet of Things
Smart home
Weather station monitoring
Digital photometer
Digital barometer
Altimeter
Hygrometer
Greenhouse climate monitoring
|
