ماژول شارژر باطری
BATTERY CHARGER 3-4S 30A RED BOARD

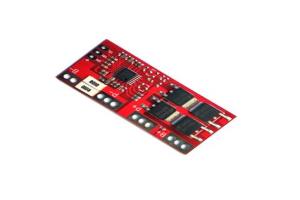

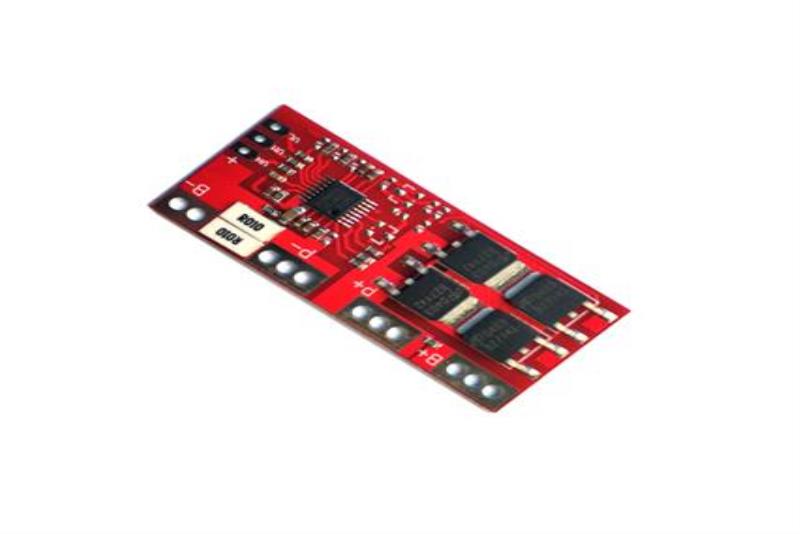

30A High Current 4S Lithium Ion 18650 Battery Charger Protection Board Module - Red
کیفیت: ORIGINAL(distributor) پکیج:
قیمت تک فروشی 1,202,170 ریال
قیمت عمده 991,736 ریال (10 به بالا)
قیمت ویژه 974,901 ریال (100 به بالا)
قیمت فوق العاده966,484 ریال (1000 به بالا)
قیمت تک فروشی 2.048 تتر با تخفیف
9.67.687.537.45
|
توضیحات
ماژول محافظ شارژ باطري جريان بالا 30 امپر
سازگتر با مدل هاي 18650
تشخيص اضافه شارژ = 4.25 ± 0.025ولت
تشخيص ديس شارژ بيش از اندازه = 2.50 ± 0.08 ولت
دماي کاري = 40- تا 85+ درجه سانتي گراد
براي جريان هاي بيشتر از 10 امپر نياز به نصب هيت سينک و جريان هاي بالاي 20 امپر بايد خنک سازي صورت بگيرد.
اندازه ي برد 60*40ميلي متر
Description
30A High Current 4S Lithium Ion 18650 Battery Charger Protection Board Module - Red
1: Nature: polymer lithium battery protection board
2: Overcharge detection voltage: 4.25 ± 0.025V
3: Overcharge release voltage: 4.15 ± 0.05V
4: Over-discharge detection voltage: 2.50 ± 0.08V
5: Over discharge termination voltage: 3 ± 0.1V
6: Overcurrent: 20 - 30A
7: Operating current: 30A ( free cooling: 10A, plus heatsink: 15A, maximum instantaneous current: 30A )
8: Termination condition: release of protection condition, and then automatic recovery without activation ( optional charger activation )
9: Operating temperature: -40 Deg.C to 85 Deg.C ( high temperature environment, please strengthen radiation )
10.Connection: welding output
11.Material: fiber components
Product size: 6.00 x 4.00 x 0.40 cm / 2.36 x 1.57 x 0.16
|
