توضیحات
ماژول پخش کننده ي فرمت هاي صوتي با 7 پين تريگر براي کنترل دستي ، کنترل چيپ از طريق پروتکول سريال ، طراحي شده با فلش مموري 4 مگ که قابليت کپي شدن صدا از طريق USB را دارا ميباشد .همچنين روي برد امپلي فاير داخلي 3 وات براي افزايش توان خروجي تعبيه شده است. اين ماژول بصورت گسترده در دستگاه هاي بازي ، سامانه هاي صوتي ، سامانه هاي ناوبري ، تردميل ، اسانسور خودرو و در دستگاه هاي هشدار دهنده کاربرد دارد.
Description

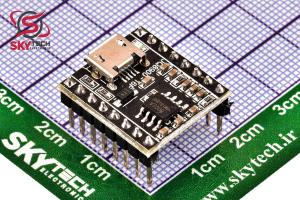

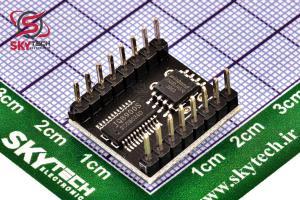

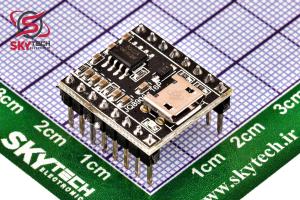

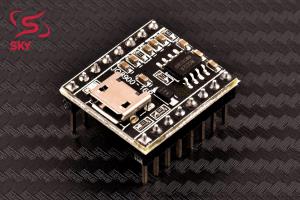

JQ8900-16P MP3 Module characteristic
7 IO Ports Trigger Control
Single-chip serial port control
Come with 4M memory,Sound can be copy with USB
Inner 3W amplified
Full set of development materials, providing technical support
It widely used:game basketball machine sound effect voice broadcasting, treadmill voice navigation, massage chair voice operation guidelines, equipment fault prompts, equipment operation guidance voice, vehicle safety voice warning, public place voice prompts, business hall warm voice prompts, etc.
MP3 file format
1,Support all bit rates 11172-3 and ISO13813-3 layer3 audio decoding
2,Supports sample rate (KHz):8/11.025/12/16/22.05/24/32/44.1/48
3,Support these sound effects: Normal,Jazz,Classic,Pop,Rock
USB port
2.0(standard)
UART port
Standard serial port, TTL level
Input voltage
DC3.3-5.2V; IO level 3.3V
Rated current
Standby current: 500uA; working current: 10MA
Size
20.32*15.5mm
Work temperature
-40?~85?
Humidity
5%~95%
|
